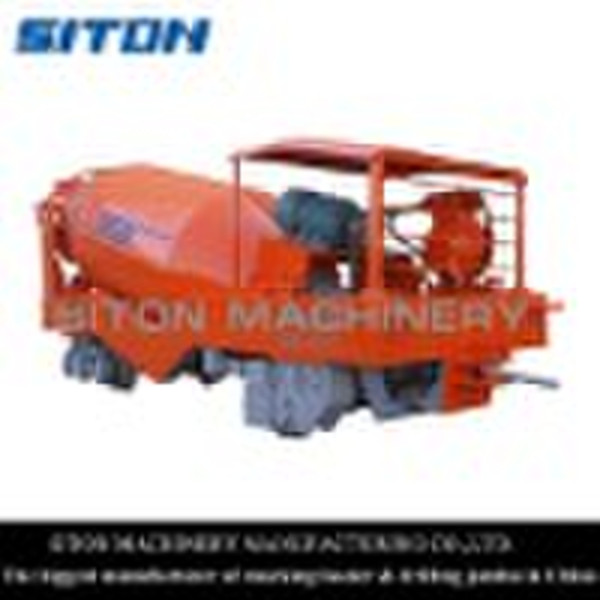

Rail Line Concrete mixer truck

TS Series rail line type concrete mixing truck, used to transport concrete from the mixing plant to the construction site. Transport in drifting, use battery traction, plus insurance after installation, can slope no greater than 18 degrees inclined heavy vehicles decentralization, empty uphill transport, the need for traction winch. Vehicle throughput TS-4 type is 4m3 (cable car at least 8 tons or more); TS-6 type is 6m3 (at least more than 12 tons of cable car), only Lane loading, unloading. Loading and unloading materials, the mixing tube by the motor drive for positive and negative direction of rotation, are transferred mixing or feed, reverse the material, walking on the way to avoid concrete segregation, when the vehicle is powered by the wheels came towards Mixing Drum Mixing for one-way direction of rotation (according to the direction of the corresponding shift), uniform mixing. The car set a clutch chain protection device, when used for transporting trucks passing, combined with manual clutch, electric motor can not start to protect the motor. When manual clutch disengaged, the motor can be connected to decorative work, need to use water to clean each tank after discharge tube. Mixing tube Flashlight tilt cylinder fitted with computer optimized design double helix leaves, mixing even made a clean discharge. Mine explosion-proof design of the transport vehicle, with coal for the railway tunnel, defense engineering, hydraulic culvert, underground mines and other Drift (delegated by inclined) of concrete mixing equipment. At the same time there are explosion-proof type.
